Magnetic Separator

Magnetic Separator
Product Description

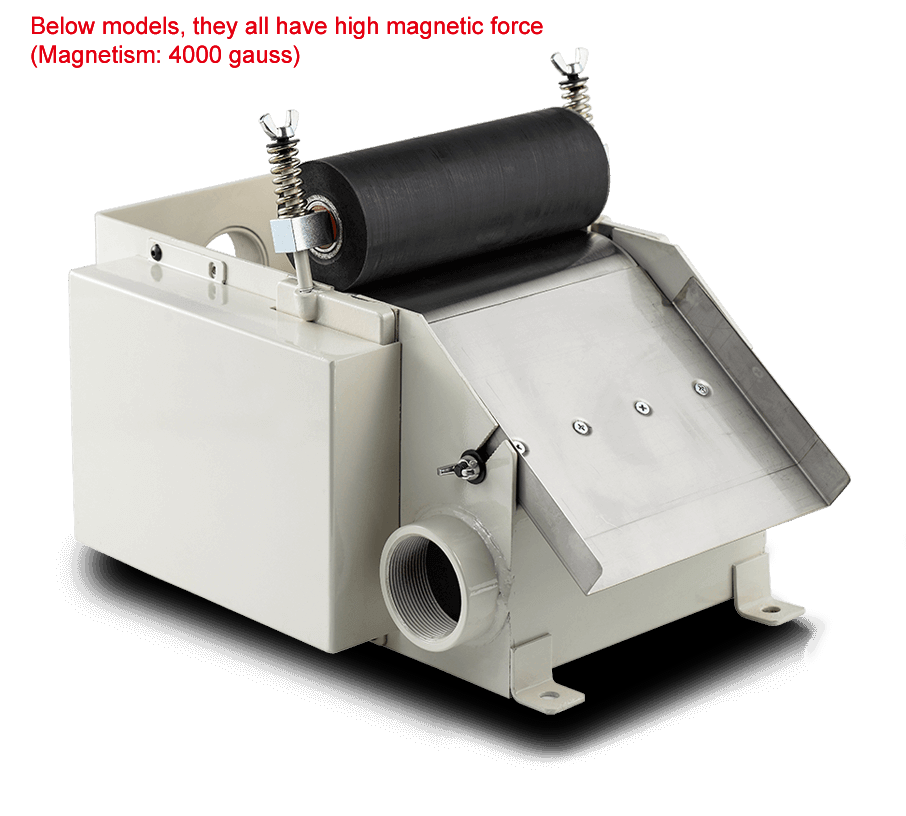

MS-Series

Feature

  • Increase workpiece’s accuracy, and reduce number of coolant replacement.
  • High viscosity’s oil based coolant can use with oiltolerance rubber roller wheel.
  • Able to separate coolant from iron residues.
MS-Series
Product Introduction
MS Series
Standards Accessories:
  1. 及屑桶一個
  2. 90彎內牙接頭一個
  3. 鐵管立布二
Dimensions:
  • A : Overall length
  • B : Overall width
  • C : Overall height
  • D : Frame height
  • E : Frame width
  • F : Rubber roller length
  • G : Inlet height(Center height)
  • H : Outlet height(Center height)

Specifications

ModelProcessing capacity
L/min		ABCDERubber roller wheel width
F		GHIJKMNmotor
MS-20 20 455 215 300 200 140 122 145 60 396 110 11 1-1/2"PT 1-1/2"PT 25W
MS-40 40 455 245 300 200 166 146 145 60 396 136 11 2"PT 2"PT 25W
MS-60 60 455 290 300 200 211 196 145 60 396 181 11 2"PT 2"PT 25W
MS-80 80 455 330 300 200 248 230 145 60 396 218 11 2"PT 2-1/2""PT 25W
MS-120 120 580 370 330 230 278 260 170 55 486 248 11 3"PT 3"PT 40W
MS-160 160 580 455 330 230 363 345 170 55 486 333 11 3"PT 3"PT 40W
MS-240 240 750 515 315 220 425 405 135 60 656 383 11 3"PT 3"PT 60W
MS-360 360 750 745 350 250 640 620 165 75 656 610 11 4"PT 4"PT 100W
MS-500 500 750 1100 520 280 826 800 180 80 656 776 11 5"PT 5"PT 220W
