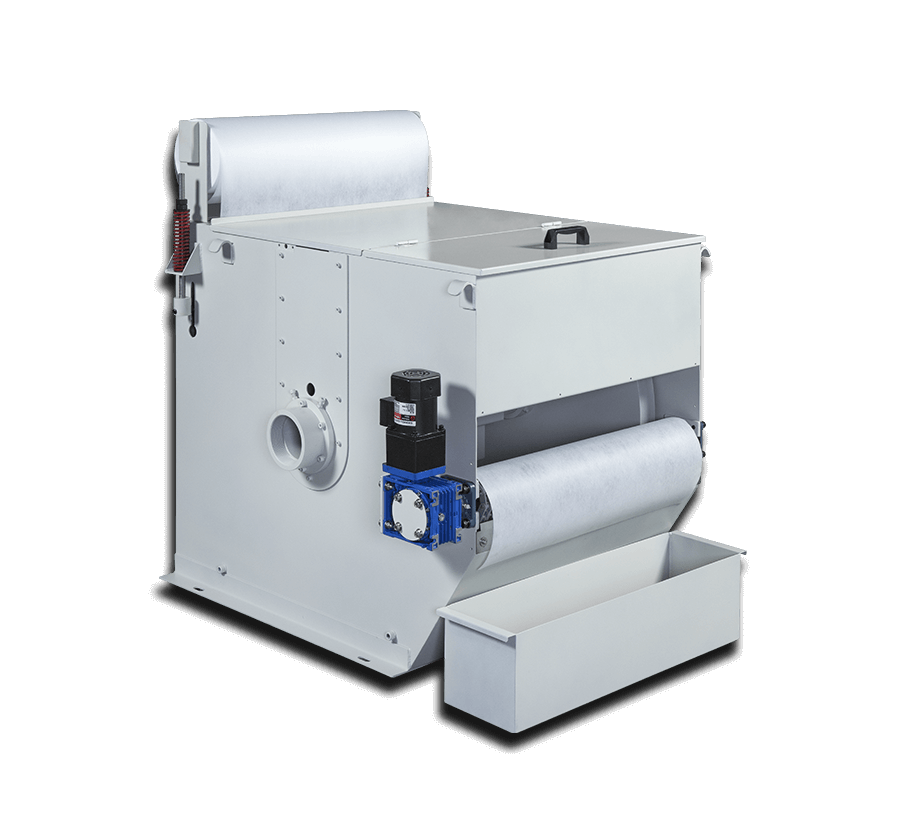

Drum Type Filter

Drum Type Filter
Product Description

DF-Series

DF Series
DF-Series
Product Introduction

Specifications

ModelPaper widthDiameterABCDLongth of outlet drain hole
E		Width of outlet drain hole
F		GHIJKLMNPump
140 500 560 790 650 800 50 580 560 605 500 385 330 16 3" 95 60 220W
200 700 560 790 650 990 50 580 745 790 500 385 330 16 3" 95 60 220W
360 700 820 1050 890 990 50 700 745 790 600 520 450 16 4" 125 100 220W
500 1000 820 1050 890 1290 50 700 1045 1090 600 520 450 16 4" 125 100 220W
1000 1500 820 1050 890 1850 50 700 1545 1590 600 520 450 16 4" 125 100 370W
1500 2000 820 1050 890 2265 50 700 2045 2090 600 520 450 16 8" 125 100 370W
